E+H waterpilot fmx21 Waterpilot Hydrostatic Level Probe
Product Details:
Manufacturer : Endress+Hauser
Product No. : fmx21
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The
E+H FMX21 Waterpilot is a robust submersible hydrostatic level transmitter built with oil-free capacitive ceramic measuring cell, engineered for continuous liquid level measurement across municipal water, wastewater, chemical, marine and environmental industries
Endress+Ha....
This series provides three mechanical housing variants for different media: 22mm stainless steel for clean drinking water, 42mm flush-diaphragm stainless steel for sludge/wastewater, and 29mm polyolefin coated anti-corrosion model for saltwater and ship ballast tanks. It supports dual level & temperature measurement via optional integrated Pt100, features automatic density compensation, and uses 4–20mA two-wire signal with superimposed HART 6.0 digital communication for flexible range configuration on-site. Fully potted electronics and dual-filter pressure compensation deliver stable readings under fluctuating temperature and humid submerged conditions, with global drinking water, explosion protection and marine classification certifications
Endress+Ha....
Detail:
| Parameter Item | Standard FMX21 Technical Value |
| Full Product Name | Waterpilot FMX21 Hydrostatic Level Probe |
| Brand | Endress+Hauser (E+H) |
| Measuring Principle | Oil-free capacitive ceramic pressure cell (99.9% Al₂O₃) |
| Max Measuring Range | 100 mbar ~ 20 bar (0–200 m H₂O / 0–656 ft H₂O) |
| Reference Accuracy | Standard: ±0.2% of set span
Platinum version: ±0.1% of set span |
| Signal Output | 4–20 mA two-wire, invertible; superimposed HART 6.0 protocol |
| Supply Voltage | 10.5–35 V DC; Ex version: 10.5–30 V DC |
| Overload Resistance | Up to 40 bar (600 psi) short-term overload |
| Optional Temperature Sensor | Integrated Pt100 for simultaneous level & temperature logging |
| Density Compensation | Software-enabled automatic density correction for liquid media |
| Configurable Units | %, mbar, bar, kPa, mH₂O, ftH₂O, psi, mmH₂O |
| EMC Compliance | EN 61326-1 industrial electromagnetic standard |
| Specification Category | Detailed Technical Data |
| Three Housing Diameter Options | 22 mm (0.87 in) 316L SS – drinking water
42 mm (1.65 in) 316L SS flush diaphragm – wastewater
29 mm (1.14 in) polyolefin coated PPS – saltwater/marine |
| Wetted Materials | 22/42mm: 316L stainless steel, ceramic, elastomer seal
29mm: PPS, polyolefin coating, ceramic, elastomer seal |
| Standard Process Temperature Range | -10 °C ~ +70 °C (14 °F ~ 158 °F) for stainless steel variants
0 °C ~ +50 °C (32 °F ~ 122 °F) for 29mm coated marine model |
| Extension Cable Materials | PE, PUR, FEP (custom length configurable) |
| Ingress Protection | IP68 permanent submersible design |
| Mounting Method | Suspension clamp hanging installation, cable gland strain relief |
| Global Approvals | Drinking water: KTW, NSF, ACS
Hazardous area: ATEX, FM, CSA
Marine: GL, ABS, LR, BV, DNV ship certifications |
| Process Media Suitability | Clean potable water, municipal wastewater, sludge, seawater, ballast tank fluid, surface water |
| Net Weight (standard 10m cable) | 0.35–0.6 kg (varies by housing diameter) |
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
Company Introduction:
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, , YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
Product Tags:
|
|

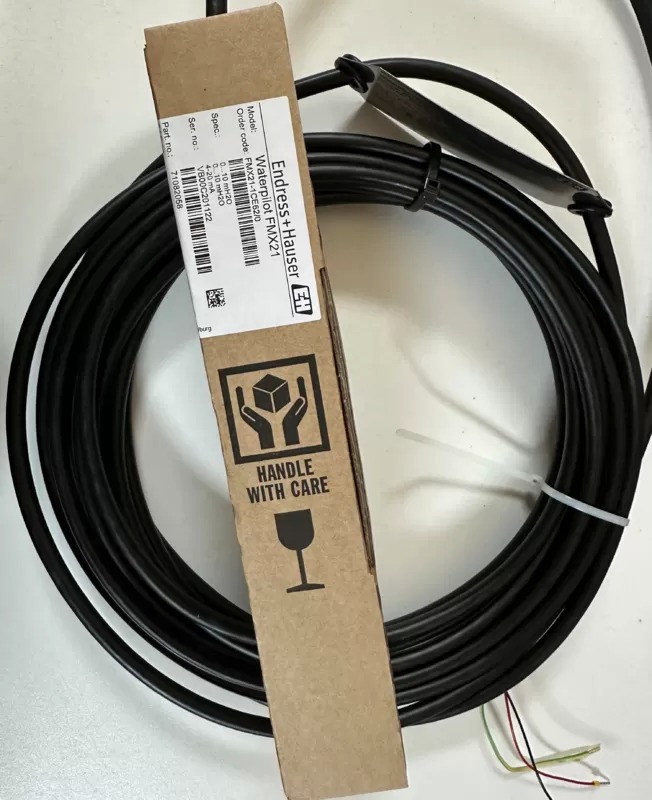

E+H waterpilot fmx21 Waterpilot Hydrostatic Level Probe Images
|
