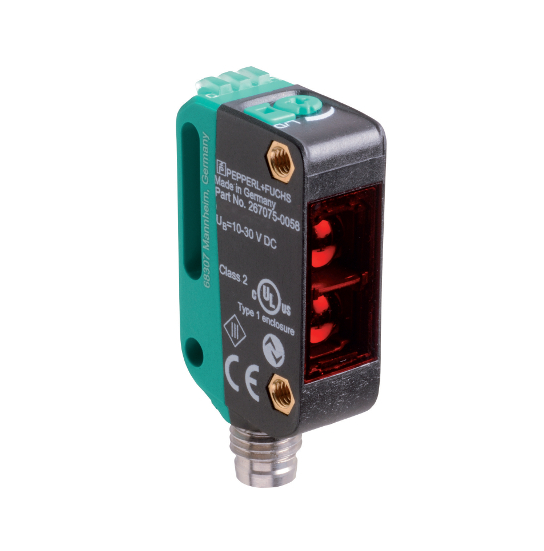

OBT150-R100-2EP1-IO Photoelectric Sensor
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : OBT150-R100-2EP1-IO
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
(p+f), a global leader in industrial automation and sensing technology, is renowned for delivering high-precision, durable sensors that excel in harsh industrial environments. The p+f OBT150-R100-2EP1-IO is a high-performance triangulation photoelectric sensor with background suppression (BGS), engineered to provide accurate object detection with minimal color dependence. This compact sensor integrates advanced IO-Link technology, making it highly versatile for a wide range of industrial automation applications, from manufacturing assembly lines to heavy-duty process control systems.
Detail:
| Specification Category | Details |
| Product Model | p+f OBT150-R100-2EP1-IO |
| Sensor Type | Triangulation photoelectric sensor with background suppression (BGS) |
| Detection Range | 5 mm to 150 mm; Adjustable range: 25 mm to 150 mm (reference target: 100mm×100mm white plate) |
| Power Supply | 10 - 30 V DC; Ripple ≤ 10%; No-load current < 25 mA (at 24 V DC); Protection Class III |
| IO-Link Specifications | Version 1.1; Device Profile: Intelligent Sensor; Device ID: 0x11060F (1115663); Baud Rate: COM 2 (38.4 kb/s); Minimum Cycle Time: 2.3 ms; SIO Mode Supported |
| Output Parameters | 2 push-pull outputs (4-in-1); Max Switching Voltage: 30 V DC; Max Switching Current: 100 mA (resistive load); Voltage Drop: ≤ 1.5 V DC; Switching Frequency: 500 Hz; Response Time: 1 ms; Usage Category: DC-12, DC-13 |
| Optical Specifications | Light Source: Modulated visible red LED; Spot Diameter: ~10 mm at 150 mm; Divergence Angle: ~3°; Ambient Light Immunity: 40000 Lux (per EN 60947-5-2); Black/White Difference: < 5% at 150 mm |
| Mechanical & Environmental Item | Specifications |
| Housing Material | Housing: PC (Polycarbonate); Optical End: PMMA |
| Protection Rating | IP67 / IP69 / IP69K |
| Dimensions (Unpackaged) | Width: 11 mm, Height: 37.1 mm, Depth: 21.5 mm |
| Weight | Approx. 17 g (unpackaged) |
| Operating Temperature Range | -40 °C to 60 °C (fixed cable); -25 °C to 60 °C (removable cable, not for conveyor chains) |
| Storage Temperature Range | -40 °C to 70 °C |
| Connection | 300 mm fixed cable with 4-pin M12 × 1 connector |
| Certifications & Standards | EN 60947-5-2, IEC 61131-9, UL E87056 (cULus certified), Class 2 power supply |
